Magnetometer

Product Overview

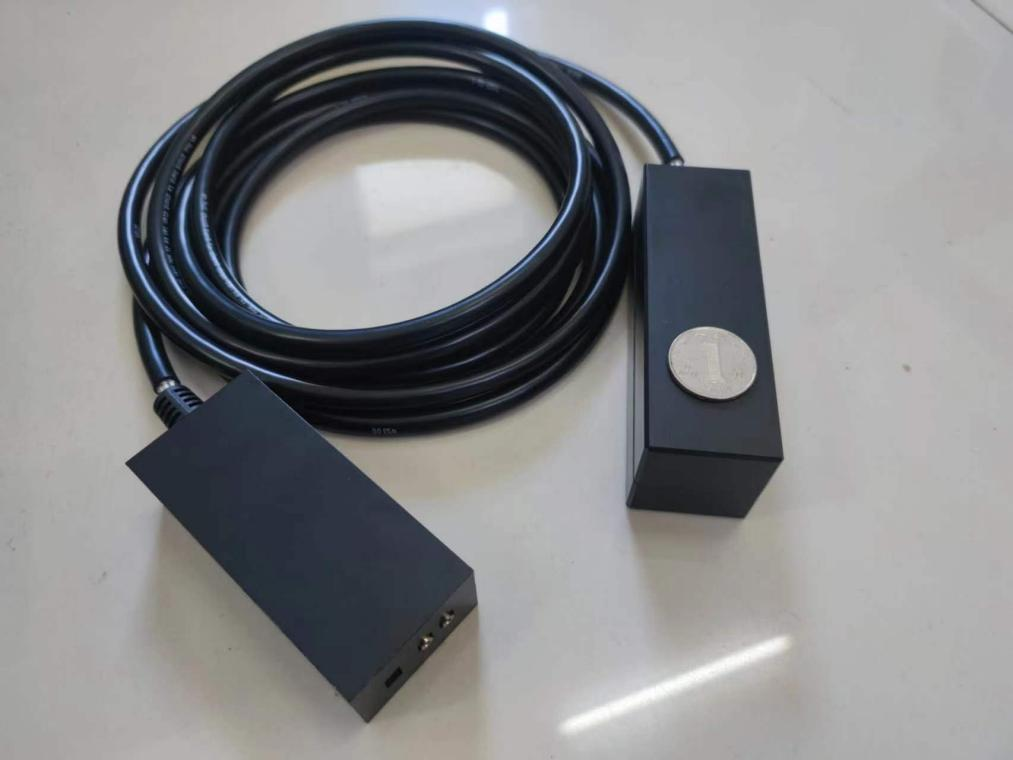

This product is a high-precision magnetic field measurement device based on the atomic spin effect. It achieves ultra-high sensitivity measurement of extremely weak magnetic fields through the interaction of light with alkali metal atoms and quantum spin polarization manipulation. The core technologies can reach international advanced standards with a small probe size, high detection sensitivity, wide dynamic range, and simple structure. It is suitable for accurate measurement of weak magnetic fields under geomagnetic background conditions and can be widely applied in scientific research, industrial testing, and geological exploration. The product adopts a modular design, consisting of a probe unit and a circuit unit, outputs measurement data via RS232 serial interface, featuring ease of operation and stable performance.

Key highlights

>Ultra-low power consumption

Typical power consumption <2.5W, hermetically sealed package, optimized for portable and low-power applications.

>Ultra-high sensitivity

Magnetic field detection sensitivity better than 1pT/Hz1/2, providing excellent weak magnetic field measurement capability.
