Time & Frequency Standard

Product Overview

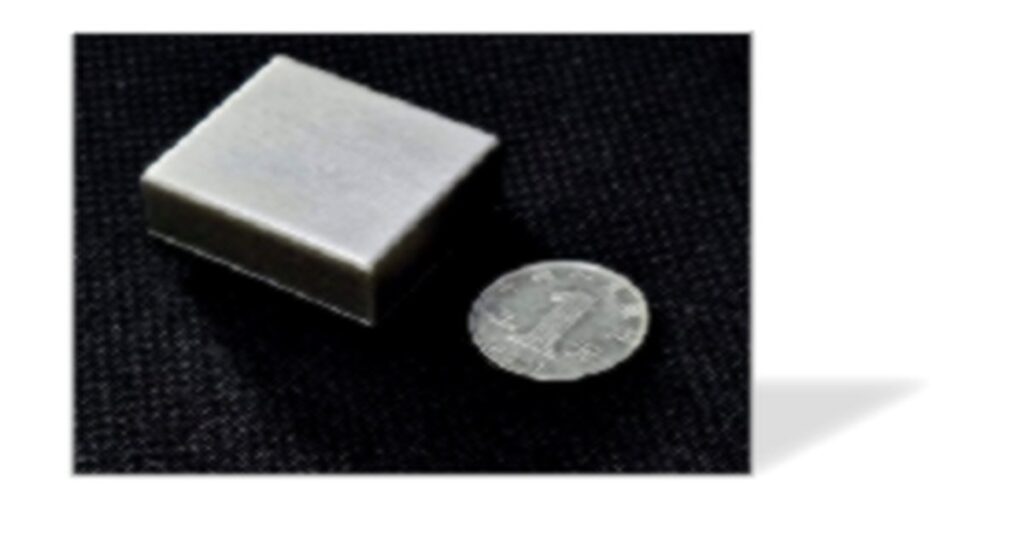

This product is a miniature atomic clock based on the principle of Coherent Population Trapping (CPT). It is developed using mature high quality components and manufacturing processes. The unit operates over a temperature range of -40°C to +70°C, maintaining frequency accuracy at the PPb (parts per billion) level across the entire operating range. With a compact size of 41mm × 35mm × 15mm, its outline and mounting dimensions are compatible with the industry-standard SA.45s interface. Featuring low power consumption, small size, and fast startup, it is suitable for a wide range of industrial and scientific equipment with stringent power and space constraints.

Key highlights

>Ultra-low power consumption

Power-saving mode with ultra-low power consumption, typical power consumption <150mW, hermetically sealed package, optimized specially for portable and low-power applications.

>Miniaturized design

Ultra-compact size, suitable for a wide range of portable and space-constrained equipment.
