High-precision, low-power miniature frequency reference designed for space- and power-constrained industrial applications
Product Overview
This product is an industrial-grade micro atomic clock based on the principle of Coherent Population Trapping (CPT). It is developed using mature high quality components and manufacturing processes. The unit operates over a temperature range of -40°C to +70°C, maintaining frequency accuracy at the PPb (parts per billion) level across the entire operating range while delivering high-stability frequency signals and 1PPS pulses. With a compact size of 50.8mm × 50.8mm × 20mm, its outline and mounting dimensions are compatible with the industry-standard SA.5X interface, facilitating system integration. Featuring low power consumption, fast start-up, and low frequency drift, it can serve as an accurate and stable time-frequency reference for communication infrastructure, industrial measurement, and scientific research equipment.
Key highlights
>High time-keeping accuracy
Timekeeping accuracy better than 1 μs (after disciplining) , suitable for long-term stable operation.
>Miniaturized Design

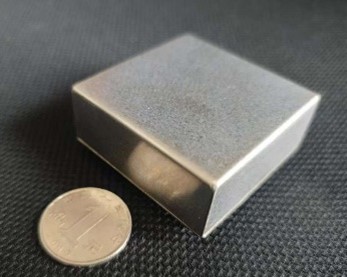

Size only 50.8mm × 50.8mm × 20mm, suitable for various space-constrained industrial equipment
